Coupling Style | Bayonet |
Coupling Locking | N/A |
Shell Size | 10 |
Shell Key-Way | Normal |
Material | Aluminium |
Total Contacts | 6 |
Contact Size | 20 |
Wire Range | 20-24 AWG |
Finish | Cadmium Olive Drab |
Colour | Olive Drab |

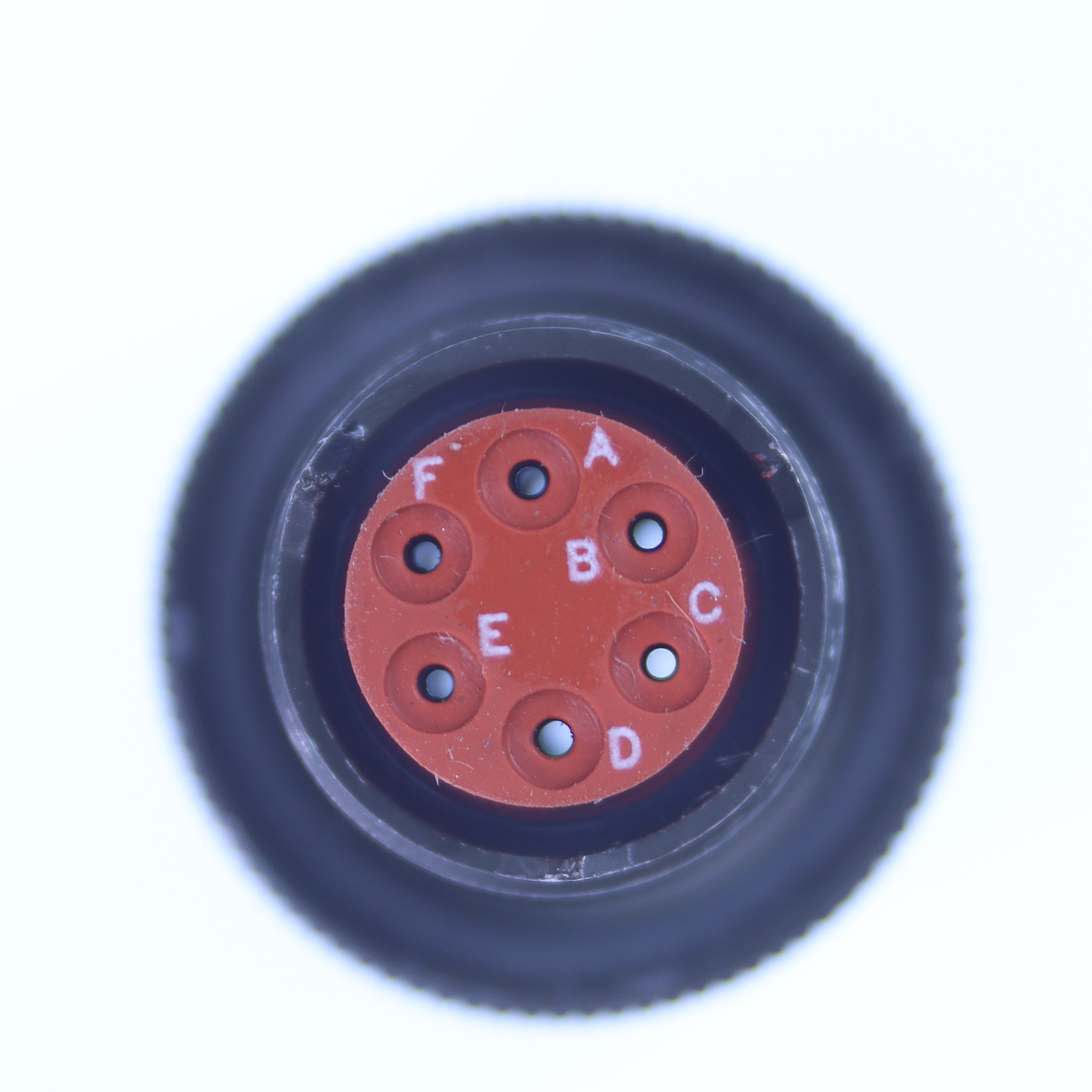

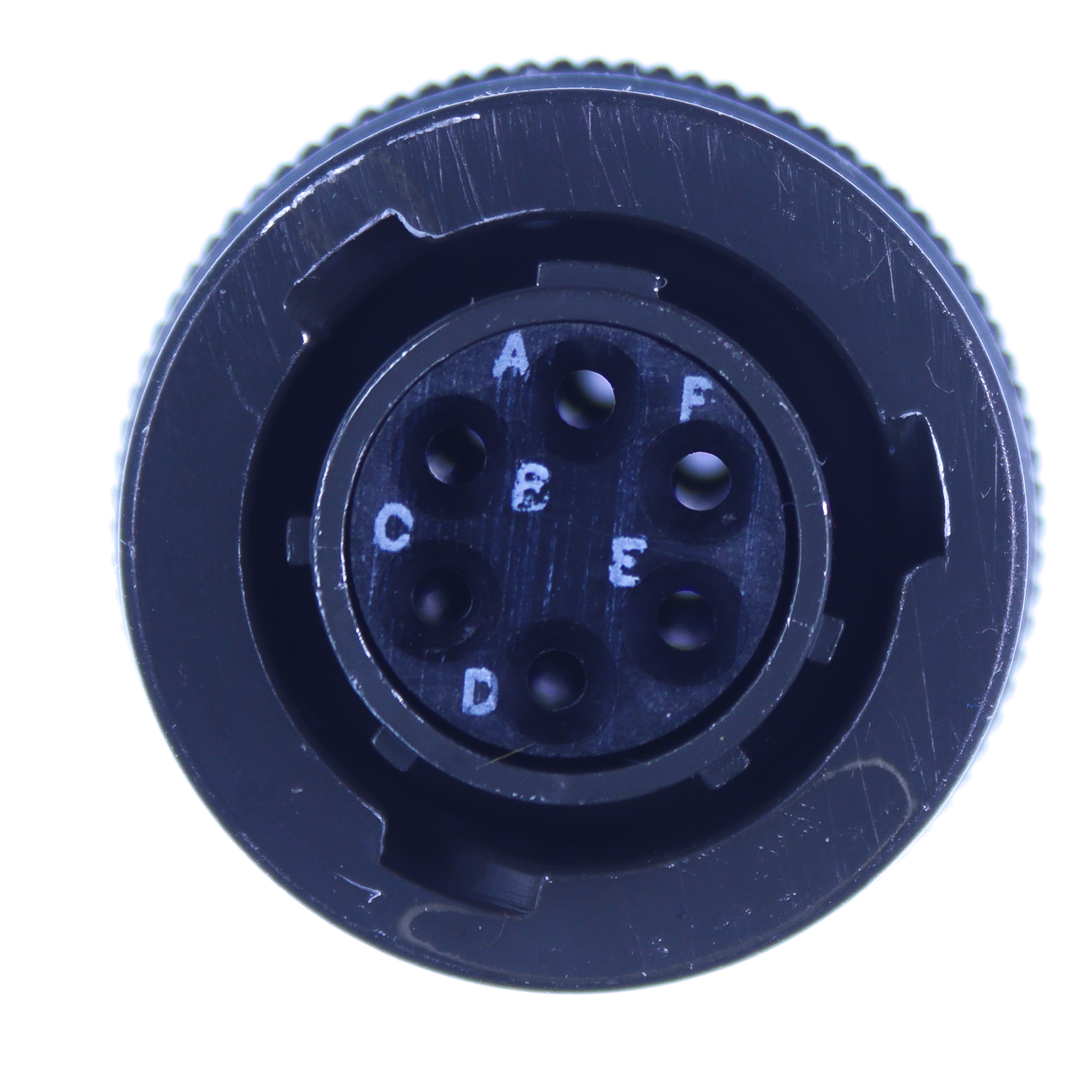

Insert Layout | 10-06 |
Insert Polarisation | Normal |
Insert Material | Fluorinated silicone and thermosetting resin |
Firewall insert | No |
Gender | Female( Sockets) |
Termination | Crimp Rear Release |
Manufacturer | Bendix |
Unit of Measure | Each |
RoHS | Non Compliant |
Connector Designator | A |
Comments | n/a |
General Notes | N/A |

£49.32

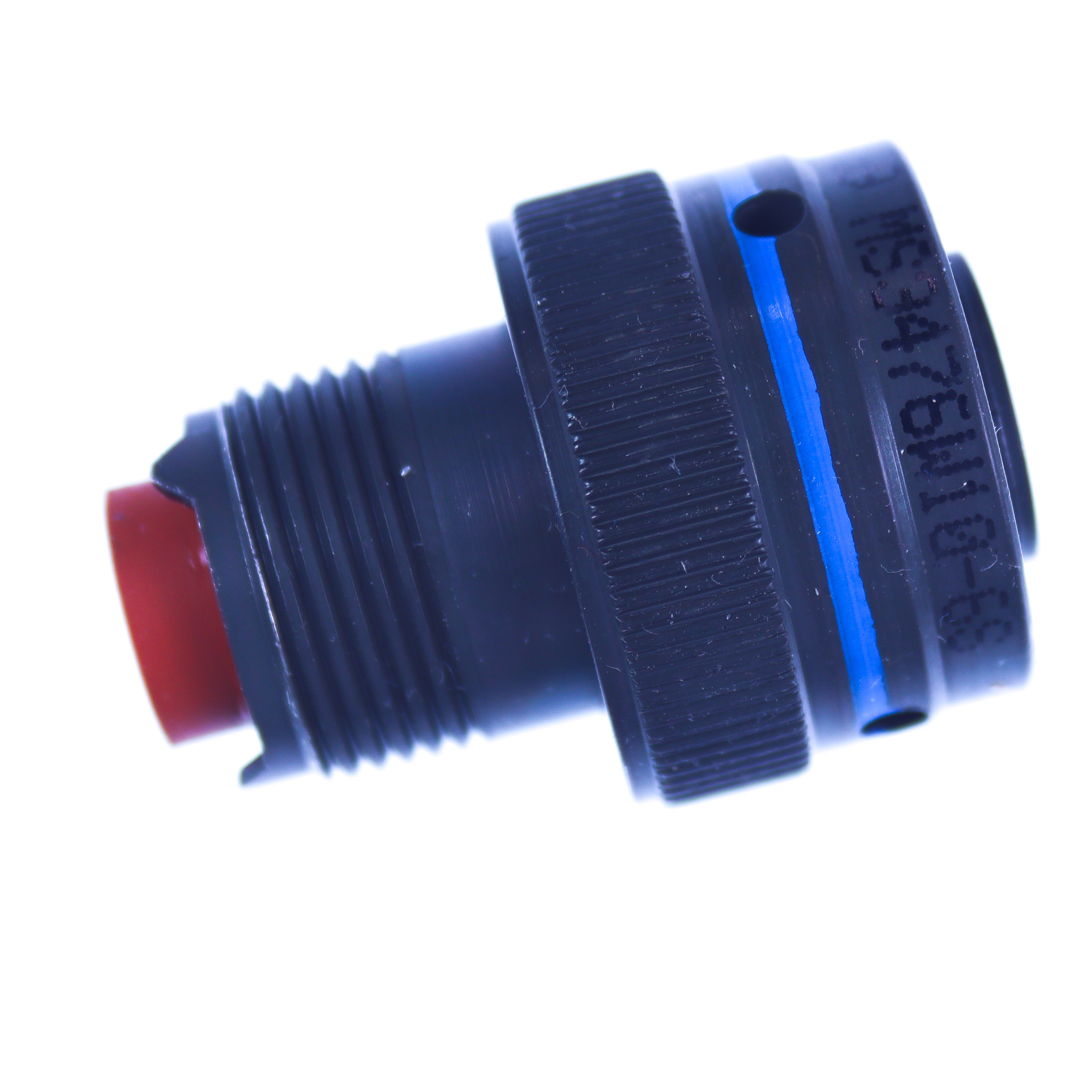

MIL-DTL-26482 Series II, Bayonet Locking, Straight plug, Aluminum shell, Olive drab cadmium over electroless nickel base, Shell size 10, Insert arrangement 10-6 (6x Size 20 Contacts (20-24 AWG)), Rear Release Crimp, Female (Socket), Polarization N.
1 in stock
